Introducing HYLINE HYPI Pivot Door
Glazed or Panels, Invisible framing, Huge 3.2m² panels.
A perfect fit for modern architectural design - The HYLINE PI pivot door system has been developed specifically for vast entrances with a minimalist design. But the HYLINE PI pivot door is not just a thing of beauty - its opening operation is pure and can be opened/closed with the lightest of touch.
HYLINE PI.
LARGE SCALE LUXURY PIVOT DOOR SYSTEM
Despite its vast size, the HYLINE PI pivot door effortlessly glides open/closed with the lightest of touches - it can even be combined with HYLINE's smart controls for completely automatic operation that is virtually silent.
The HYPI pivot door also provides ample customisation options including multipoint closures, double seals and multiple colours and finishes to name just a few.
- Beautifully minimalist design
- Designed specifically for large openings
- Effortless manual or fully automatic (motorised) open/closing
- Multi-point locking system
- Excellent acoustic and thermal performance
- Multiple colour/finish options including glass and wood
HYLINE PI Pivot Door Specification
Our Product Code
MFP-HYPI
Configuration Options
Manual open/close
Automatic (motorised) open/closing
Usage
Suitable for exterior use in large openings.
Frame width
Concealed frame surround.
Maximum Height
3.2m
Maximum Width
3.2m
Maximum Area
10.24m² (confirmed upon consultation)
Maximum Weight
750kg/ML
(Available with HYPI 3D concealed IR Pivot Driver-S-box)
Axial Position of the Pivot
Eccentric position on the vent: Min 250mm from the lateral fixed mullion.
Symmetric position of the pivot axe 1/2 width dimension
Maintenance
Low maintenance pivot device adjustable with a minimum of intervention.
No additional lubrication required.
Symmetric position of the pivot axe 1/2 width dimension
Glazing
Double glazing (where applicable).
IGU double glazing (1.0 Wm² K) Intercalaire Low e
1.3 W m² K
IGU triple glazing (1.0 Wm² K) Intercalaire Low e
0.98 W m2² K
Smart Controls
Optionally, most doors in the HYLINE range can include the HYMOTOR motors system and smart controls, allowing you to operate the opening/closing of your doors via physical buttons and/or the HYLINE app on your smartphone or tablet.
Locking and Security System
Integrated cylinder lock can be hidden on the wall to create an invisible frame effect whilst still providing maximum control.
For added security, an electromagnetic lock, Digicode or finger scanner can be integrated in the wall or the frame on select ranges.
Multi-point Lock
Multipoint locking system. The mechanism is completely hidden in the frame and each locking point is adjustable.
Finishing Options
HYLINE Colour Essentials (Ral Coloures STD).
HYLINE Natural Metals (Qualanod EURAS Class 2 STD).
HYLINE Advanced Coating (Hiper Durable Finishings).
HYLINE Luxury Collection under Qualicoat Seaside Standards.
Wood finish.

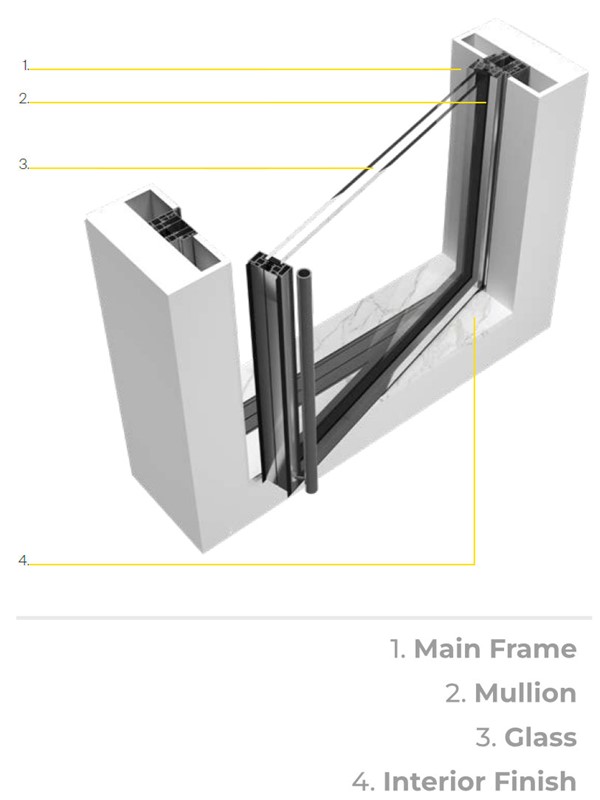

Invisible Frame
The surround aluminium framing is completely hidden in the surrounding wall/structure.

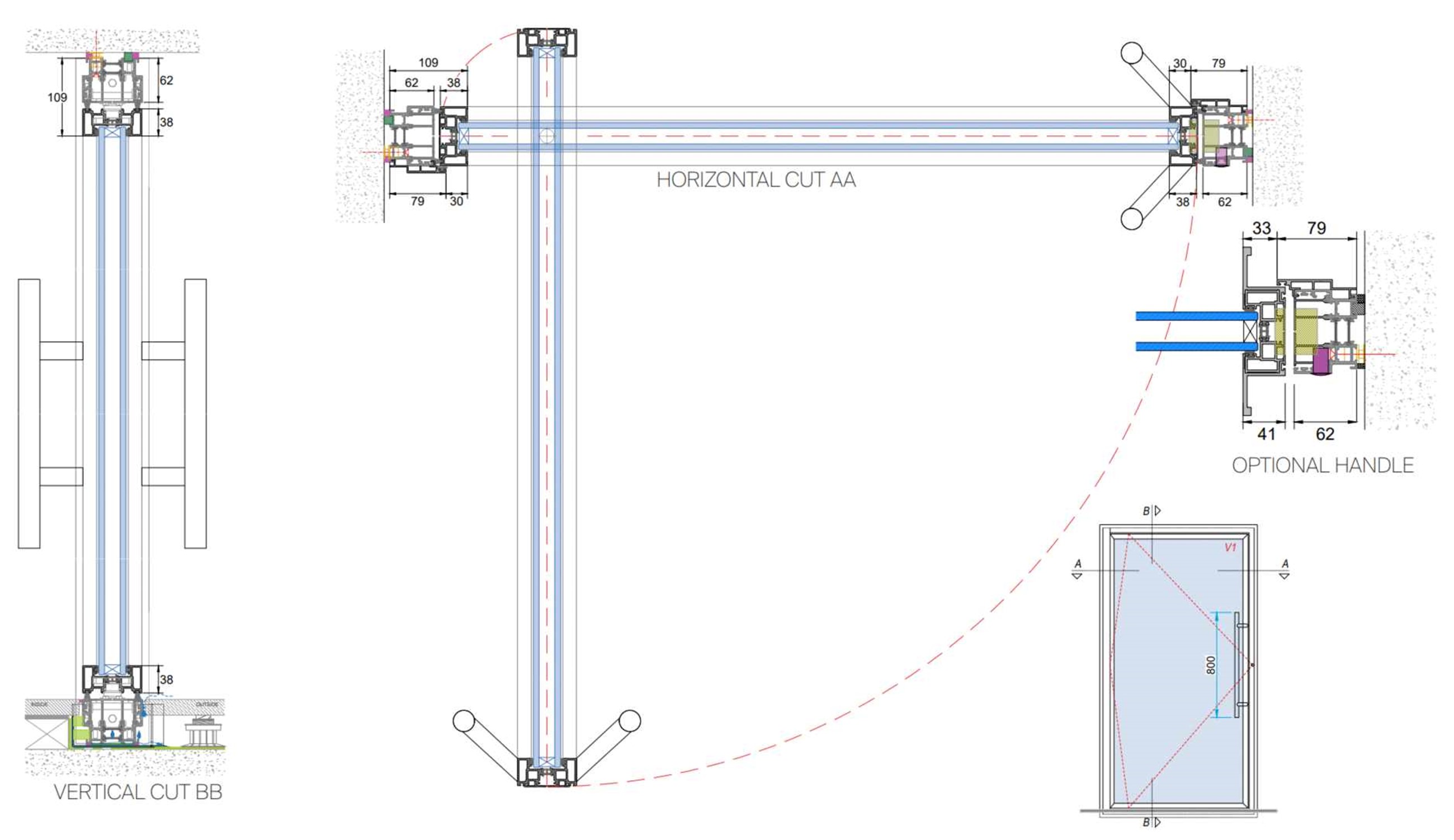

HYLINE PI Pivot Door Cross-section Diagrams

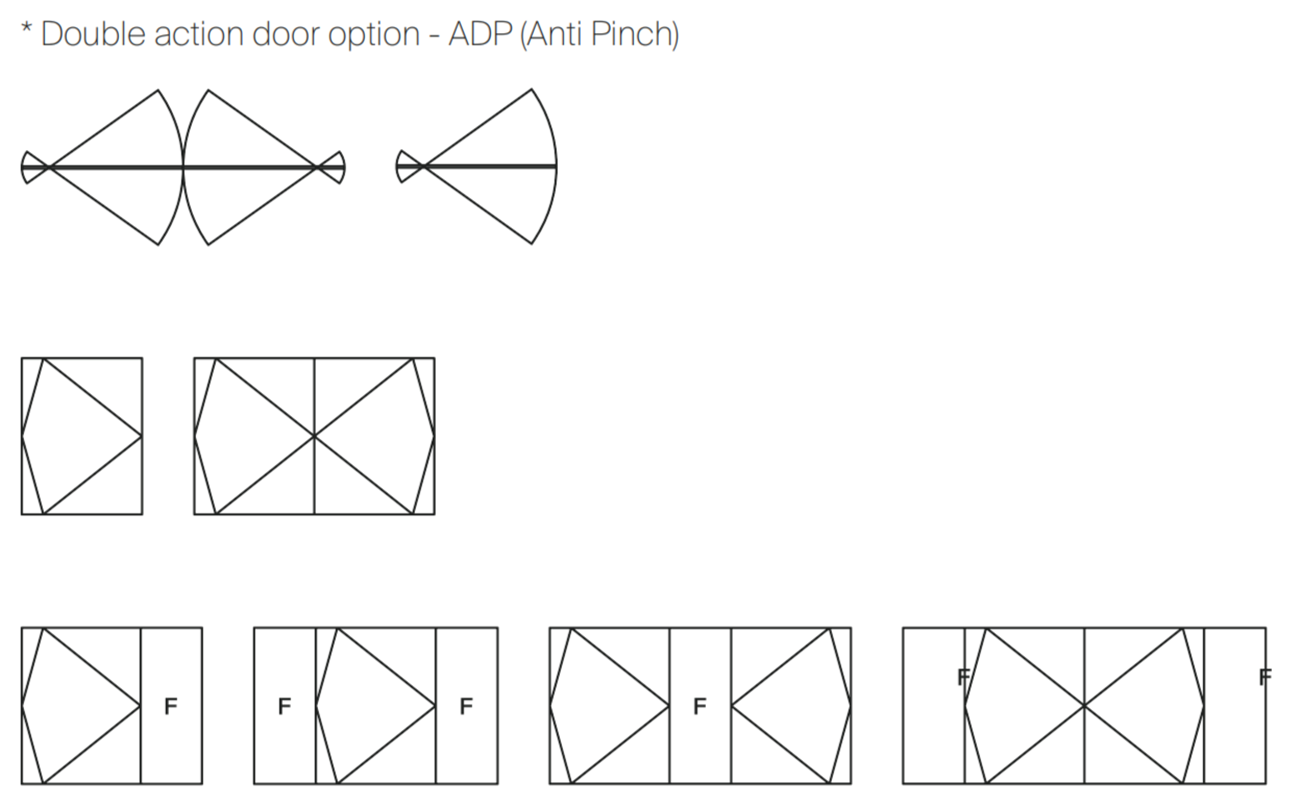

Typical HYLINE PI Pivot Door Layout Configurations
HYLINE Lacquer Finishes
In addition to safeguarding aluminium from natural corrosion, lacquering provides an array of colours and finishes to add that finishing touch to your HYLINE window and door system.
As no two projects are the same, at Minimal Frame Projects we offer a range of colours and textures and finishes to personalise your HYLINE glazing. Popular finishes include textured RAL lacquers, mattes and a very special HYLINE textured lacquer.
Matte Finishes
Textured Finishes
Noir Finishes
HYLINE Anodization
Anodization is an electrolytic process that generates an oxide layer of aluminium alloy. HYLINE windows and doors typically are available in a choice of two sub-treatments:
- Polishing - Resulting from mechanical treatment
- Satin finish - Resulting from chemical treatment
This process not only preserves the natural colour and beauty of aluminium, but also offers a spectrum of colours through electrolytic colouring.
Electrolytic Anodization is available on all HYLINE windows and doors at Minimal Frame Projects in a choice of champagne, bronze or black.
Adonized Finishes
Documents, Fact Sheets & Brochures
Official HYLINE UK Supply and Installation by Minimal Frame Projects
Get a price for
HYLINE PI Pivot Doors
Tell us about your project and our friendly team will get back to you with a no obligation quote.
Get A HYLINE Quote Visit Our South London Showroom
Minimal Frame Projects - The Sliding Door, Pivot Door & Structural Glass Specialist
At Minimal Frame Projects we have years of experience diligently sourcing the very best top-tier glazing solutions featuring ultra-slim frames, superior manufacturing and cutting-edge glazing technologies.
We are proud to be able to offer our clients an official UK HYLINE supply and installation service across the south east of the UK.
Our offerings range from the design, fabrication, supply and professional installation of a range of premium sliding door systems, pivot doors, bifold doors, structural glazing and glass box extensions to architects, commercial and residential extensions, refurbishments and new build projects.
OUR MISSION
To be a recognized company in both national and international markets, due to the quality, development and innovation of it's products and services, focusing on excellence.
OUR VISION
To provide customers quality service, in order to obtain a product of excellency and full customer's satisfaction.
OUR VALUES
Customer orientation, promoting the follow-up; Innovation, quality and safety; Professionalism and meeting deadlines; Integrity, honesty and ethics; Team spirit.
We'd welcome a chat about how Minimal Frame Projects can assist you in your next glazing project. Please drop us an email, give us a call or arrange a visit to our South London showroom to get hands-on with the next generation of glazing systems for yourself.
Why choose HYLINE Windows & Doors?
It's quite simple... Choose HYLINE windows and doors for unparalleled, luxury glazing excellence.
With a focus on glass and customisable aluminium frames, each HYLINE product stands out for its unique design and adaptability to diverse projects.
As a modular solution, HYLINE offers architects flexibility, combining minimalist aesthetics with high technical performance, manageability, resistance, and total thermal/acoustic insulation.
HYLINE's expertise in aluminium window and door framing systems ensures innovation, integrated floor systems, hidden security features, and slender profiles, contributing to HYLINE's success, embodying values like customer orientation, innovation, and professionalism.
Other HYLINE Windows & Doors from Minimal Frame Projects
